60 mil HDPE Geomembrane Pond liner

For over 20 years, our company has been a leading manufacturer and exporter and installer of High-Density Polyethylene (HDPE) geomembranes.Now our company is a globally trusted partner for most critical containment challenges. When your project demands an stable, durable barrier, our 60mil (1.5mm) HDPE geomembrane is a good choice. This material is also named HDPE pond liner, geomembrane liner, 60 mil HDPE liner, 60mil pond liners, and sometimes as high-spec 60 mil plastic sheeting for heavy duty applications.

What is a 60mil (1.5mm) HDPE Geomembrane liner?

An HDPE geomembrane is a waterproof impermeable synthetic liner. Its primary purpose is to control and prevent the migration of liquids or gases. The 60mil is the thickness of the geomembrane, means 1.5mm thickness too.This particular thickness offers an excellent mechanical strength and chemical property, and a cost effective containment solution.

Our 60mil HDPE geomembrane is manufacturer from 100% virgin polyethylene resin,which are imported from other countries. This specific grade of resin is selected for its superior chemical property, outstanding UV resistance, and famous physical properties. After the blowing film production process, the liner property are finished at a high level,and can meet the ASTM GRI GM13 standard.

Features & Benefits of Our 60mil (1.5mm) HDPE Liners

1. Excellent Durability & Extended Lifespan: Superior UV Resistance: Expertly formulated with quality carbon black and advanced UV stabilizers, our geomembranes has a long time sun exposure without significant degradation. Chemical Resistance: HDPE is naturally resistant to much of chemicals, including acids, alkalis, salts, hydrocarbons, and various solvents. This makes it very suitable for aggressive environments like mine leach pads and landfill leachate systems. High Puncture and Tear Resistance: The 60mil thickness provides high porperty against punctures, tears, and daily operational abrasions, safeguarding liner integrity over time. Excellent Stress Crack Resistance: Environmental Stress Crack Resistance (ESCR) item is very important for critical applications for long-term performance under stress.
2. Unmatched Impermeability:HDPE has incredibly low permeability coefficient. This means it forms a highly effective barrier against liquids and gases.
3. Optimal Flexibility and Elongation:our 60 mil plastic sheeting maintains excellent flexibility. This allows it to match different shapes. Its impressive elongation properties allow it to stretch considerably before break.
4. Reliable Weldability for Secure Seams:Our HDPE geomembranes are engineered for consistent, high-strength thermal fusion welding (utilizing hot wedge or extrusion techniques). This process creates durable seams that are often stronger than the material itself, ensuring a continuous, leak-proof barrier system. Our certified installation crews are masters in achieving these critical connections.
5. Significant Long-Term Cost-Effectiveness:While there’s an initial investment, the extended service life (frequently exceeding 50 years when correctly specified and installed), minimal maintenance needs, and the prevention of astronomically expensive environmental remediation make our 60mil HDPE liner an economically sound choice for the project lifecycle.
6. Proactive Environmental Protection:By securely containing potentially hazardous materials, our geomembranes are necessary in safeguarding soil, groundwater, and surface water. This role is especially important in environmentally sensitive applications like modern landfills and mining operations.
7. Logistical Advantages (Lightweight):Compared to traditional containment barriers like concrete or geosynthetic clay liners, HDPE geomembranes are lighter. This translates to easier, faster, and more economical transportation and on-site handling.

Manufacturing Process of 60 mil HDPE Liner

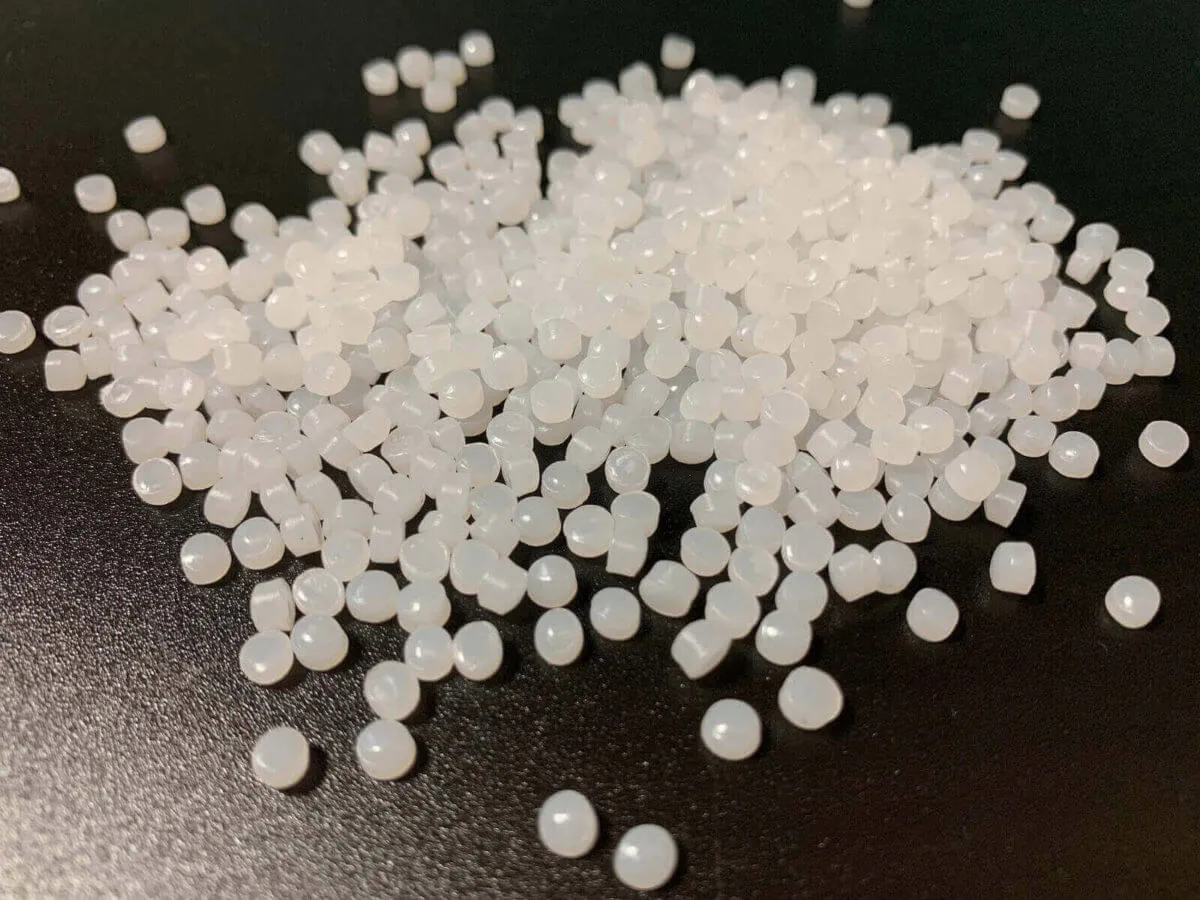

Premium Virgin Resin Selection: The foundation of a superior liner is its raw material. We insist on using only top-grade, 100% virgin HDPE resins from globally recognized suppliers. This ensures no recycled material can compromise the liner’s structural property or its designed long-term performance.

Production Technology: Our geomembranes are produced using the blown-film or flat die extrusion (calendering) method. This involves melting the HDPE resin pellets and extruding them through a precision die to form a continuous, uniform sheet of the exact specified thickness (1.5mm for this product).

Strict Quality Control – Every Step, Every Roll:

• Raw Material Inspection: The resins are tested for key performance indicators like melt flow index, density, and purity.
• In-Process Monitoring: The important parameters such as thickness, mechnical property, and roll width are continuously monitored by advanced sensor systems and our skilled operators during the all production.
• Finished Product Testing: Samples from every production batch will be tested at laboratory. These include tensile strength, tear resistance, puncture resistance, carbon black content and dispersion, UV resistance (OIT), and other properties, all benchmarked against leading international standards like GRI-GM13.

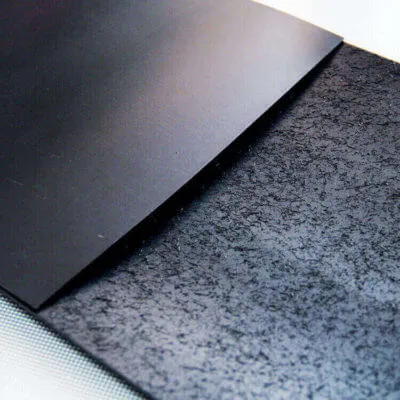

Textured Surface geomembrane: On steep slopes in landfills or heap leach pads, we can provide textured 60mil HDPE geomembranes (one side or both sides) to meet specific project design requirements.

Packaging & Efficient Global Logistics

It is also important for successful delivery of our products. Our 60mil pond liners and geomembranes are packaged to ensure they arrive at your site in perfect condition:

Optimized Rolls: Geomembranes are normally supplied in rolls, with widths typically ranging from 5.8m to 8m(popular 5.8m 7m and 8m) and lengths from 50m to 200m (or as specified), designed to minimize on-site seaming and installation time.

Durable Protective Wrapping: Each roll is packed by woven bag to protect it from damage during shipping, handling, and on-site storage.

Traceability: there are samples for each batch, to keep a traceability for the liner.

Customization for Your Needs: We readily accommodate custom roll sizes and specific packaging requirements to align with your project’s unique logistics.

Proven Export Expertise: As seasoned international exporters, we can help to manage many of global shipping, including necessary documentation and customs procedures, guaranteeing timely and efficient delivery to your project site, anywhere in the world.

Applications of 60 mil HDPE Geomembranes Liner

With the wonderful property of the geomembrane,our geomembrane are used in many civil engineering projects.

1. Mining Industry :

The global mining industry depends on high standard HDPE geomembranes for both environmental management and operational efficiency.

* Heap Leach Pads: Necessary for extracting gold, copper, silver, and other minerals, our geomembranes create the impermeable foundation of heap leach pads. They prevent valuable pregnant leachate solutions from escaping, maximizing mineral recovery while rigorously protecting underlying groundwater. The liner exceptional resistance to acidic or alkaline leaching solutions is first choice.

* Tailings Dams & Storage Facilities: The secure, long-term containment of mining tailings (which are often chemically active or hazardous) is super important. Our liners provide strong, lasting barriers, reducing environmental risks.

* Process Water & Solution Ponds: Evaporation ponds, pregnant solution ponds (PLS), and barren solution ponds (raffinate) all demand reliable lining to conserve valuable process water and prevent contamination.

* Containment Channels : Effectively directing process water flows or contaminated runoff.

Country: Ghana

Project: Mining project

2. Landfill:

Modern landfills are important containment systems designed to protect the environment from waste and leachate.

* Base Liner Systems: It serves as a primary or secondary impermeable barrier at the base of a landfill, preventing leachate (the liquid generated as water percolates through waste) from contaminating soil and groundwater resources. It’s frequently used in composite liner systems together with GCLs (Geosynthetic Clay Liners) for enhanced protection.

* Landfill Caps/Covering: When a landfill cell reaches capacity, it must be securely capped. Our HDPE geomembranes form a critical impermeable layer in these capping systems, preventing rainwater infiltration (which minimizes further leachate generation), controlling gas emissions.

* Leachate Collection Ponds & Storage Systems: Providing secure containment for collected leachate prior to its on-site treatment or safe off-site disposal.

Country: Cambodia

Project: Landfill project

Country: Malaysia

Project: Landfill project

3. Other Key Applications:

* Water Reservoirs & Canal Liners: Preventing seepage and water loss in potable water reservoirs, irrigation canals, and lakes.

* Aquaculture (Fish & Shrimp Ponds): Creating stable, controlled environments for fish and shrimp farming. This improves water quality management, prevents disease transmission from the soil, isolates stock, and simplifies harvesting.

* Power Plant Coal Ash Impoundments (CCRs): Securely containing coal combustion residuals.

* Secondary Containment Systems: For fuel tank farms, chemical storage areas, and industrial processing zones, providing a crucial backup barrier against spills.

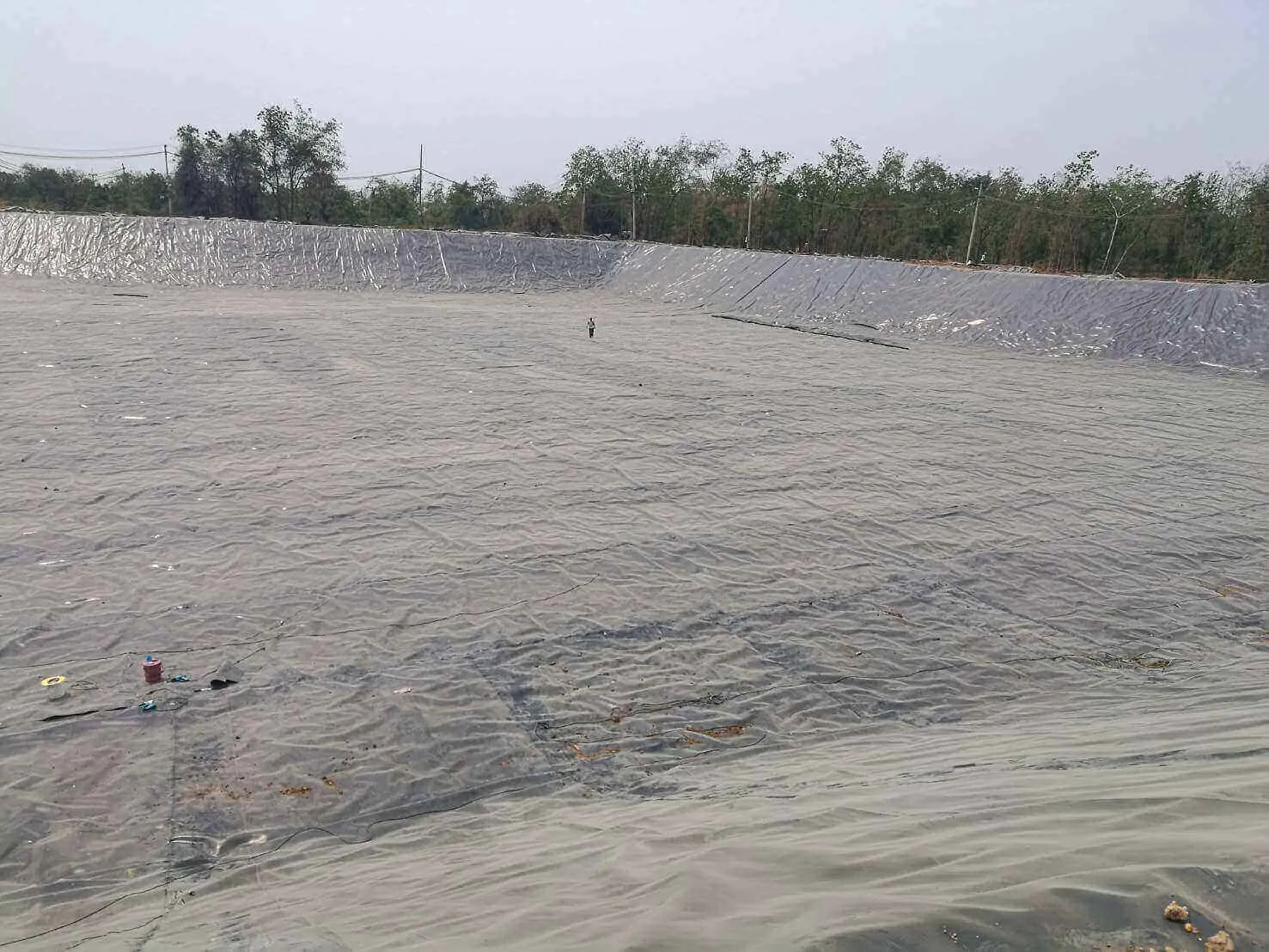

* Wastewater Treatment Lagoons: Lining anaerobic and aerobic treatment ponds in municipal and industrial wastewater facilities.

* Agricultural Applications: Manure lagoons, slurry storage, and irrigation water containment.

Country: Thailand

Project: Waste water treatment

Country: Philippines

Project: Fish pond

Our Services & Advantages

We are not only a geomembrane manufacturer but also your dedicated partner in comprehensive containment solutions.

• Complete Solutions: From design assistance to material supply and installation guidance.
• Experienced Construction Team: In-house technicians for welding, inspection, and supervision.
• OEM and Customization: We can print your logo and customize liner specifications.
• Global Export Experience: We’ve shipped to over 60 countries, including Kenya, Tanzania, the Philippines, Malaysia, Congo, Australia, Canada, etc.
• Competitive Pricing: Direct factory sales cut down middleman costs.
• Fast Production & Delivery: Standard production lead time is 7-10 working days.

FAQS about 60mil (1.5mm) HDPE Geomembranes

Q1: What is the expected operational lifespan of a 60mil HDPE geomembrane?

A: If the quality standard is GRI-GM13, and expertly installed by certified technicians, our 60mil HDPE geomembranes can be over 30 years. In buried, non-exposed conditions, this lifespan can be significantly longer.

Q2: Is your 60mil HDPE liner UV resistant for exposed applications?

A: Yes, Our HDPE geomembranes are specifically formulated with approximately 2-3% high-quality, finely dispersed carbon black and advanced UV inhibitor packages. This provides excellent, long-term resistance to degradation from ultraviolet radiation, making them suitable for exposed applications.

Q3: What key international standards do your geomembranes conform to?

A: Our 60mil (1.5mm) HDPE geomembranes are produced to meet GB Standard and GRI-GM13 standard,and TDS can be customized according to your requirement.

Q4: Do you provide direct installation services for the 60 mil plastic sheeting (geomembrane)?

A: Yes, we do. And considering the cost issue, we can arrange one engineer to teach your team about the installation, and then your team can finish the work by themselves.

We invite you to contact us today. Let’s discuss your specific project requirements and allow us to show our solutions, and you can follow our Linkedin and Facebook for more informations!
