About Planetliner | Geosynthetics Manufacturer & Global Supplier
Geosynthetics Materials for Engineering Projects
Planetliner is a China-based geosynthetics manufacturer and supplier specializing in geomembrane, geotextile and related geosynthetic materials for civil engineering, environmental protection, water containment, mining, aquaculture and infrastructure projects.
Established in 2002, Planetliner is a geosynthetic brand of Shandong Taifeng Commercial Group Co., Ltd. We combine manufacturing capabilities, quality control and international export experience to supply geosynthetic materials for contractors, distributors, project owners and engineering partners worldwide.
Our core products include HDPE geomembrane, LLDPE geomembrane, woven geotextile, nonwoven geotextile, geogrid, geosynthetic clay liner (GCL), geonet and other geosynthetic materials.Planetliner provides geosynthetic materials for projects where containment, separation, filtration, drainage, reinforcement or soil protection are critical to long-term performance.Unlike a general building-material supplier, our product portfolio is focused on geosynthetic solutions used in demanding engineering environments.
Our objective is straightforward: provide materials that meet project requirements, maintain consistent quality from batch to batch, and help our customers reduce material-related risks throughout the project lifecycle.We work with customers who need more than a material quotation. For many projects, selecting the correct material, thickness, strength and surface configuration can directly affect installation efficiency, service life and project risk.
Main Geosynthetic Products and Manufacturing Capability
Geomembrane
Planetliner supplies HDPE and LLDPE geomembranes for applications requiring low permeability and reliable containment performance.
Available configurations include smooth and textured surfaces, with thicknesses and dimensions selected according to project requirements.
View HDPE Geomembrane , View LLDPE Geomembrane,View Textured Geomembrane.
Geomembrane: Geomembrane liners are made of virgin polyethylene resin by blow film or calendering process. All the PE resin is 100%virgin material, from Saudi Arabia, Qatar etc famous manufacturer ,and the masterbatch is from Cabot ect factories.The resin is hot melted and become a film bubble from the extruder,and then cut into the requirement with,and make rolls.
Production capacity :20-40tons every day, 20000tons annual capacity.
- Material:HDPE,LLDPE
- Surface:Smooth, Textured/Rough
- Color: Black mainly, green, blue,white colors, customized
- Thickness:0.3mm,0.5mm,0.75mm,1mm,1.5mm,2mm,3mm
- Roll Width:1m-8m at max, 5.8m 7m and 8m popular, customized
- Roll Length:50m,100m,customized
Geotextile
Planetliner supplies both woven and nonwoven geotextiles manufactured from polypropylene (PP) and polyester (PET).
Our geotextile products are used in road construction, drainage systems, embankments, soft soil improvement, landfill systems, coastal protection and other civil engineering applications.
View Nonwoven Geotextile, View Woven Geotextile, View Polyester Geotextile, View Polypropylene Geotextile.
Non Woven Geotextile: The staple fiber non-woven geotextile is made of staple fiber polyester or polypropylene. The fabric are laid, and then stretched through pre-needling, barbed, and main-needling processes, and trimmed to form the geotextile cloth.Filament continuous nonwoven geotextile is made of pet chips,melted and plasticized,punched into fabric and make geotextile cloth.
Production capacity :20-40tons every day,20000tons annual capacity
- Material:Polyester PET,Polypropylene PP
- Weight:100g,150g,200g,300g,400g,600g,800g,900g,1000g
- Color: White mainly, black green, blue colors, customized
- Roll Width:1m,2m,3m,4m,5.8m or 5.9m,customized
- Roll Length:50m,100m,customized
Woven Geotextile: Woven geotextile use high strength industrial polypropylene, polyester and other synthetic fibers as raw materials, and the fiber is woven according to the set warp and weft density to form the basic structure of the geotextile cloth.
Production capacity:5-20tons every day,10000tons annual capacity.
- Material:Polyester PET, Polypropylene PP
- PETWoven:100/50,200/50,400/50,600/50,800/50,1200/50kN/m
- PET Woven:50/50,100/100,200/200,300/300,600/600kN/m
- PP Woven:41/41,60/60,80/80,100/100,120/120,200/200kN/m
- Roll Width:5.2m mainly, 4.6m 5m customized
- Roll Length:50m,100m,customized
Other Geosynthetic Materials
Our broader product portfolio includes:Geomat,Geogrid,Geonet,Geotube,Geosynthetic Clay Liner (GCL),and other customized geosynthetic materials.
Applications We Do
Geosynthetics are highly application-dependent materials. The appropriate product is determined not only by price, but also by project conditions and required engineering performance.Planetliner supplies materials for several major application sectors.

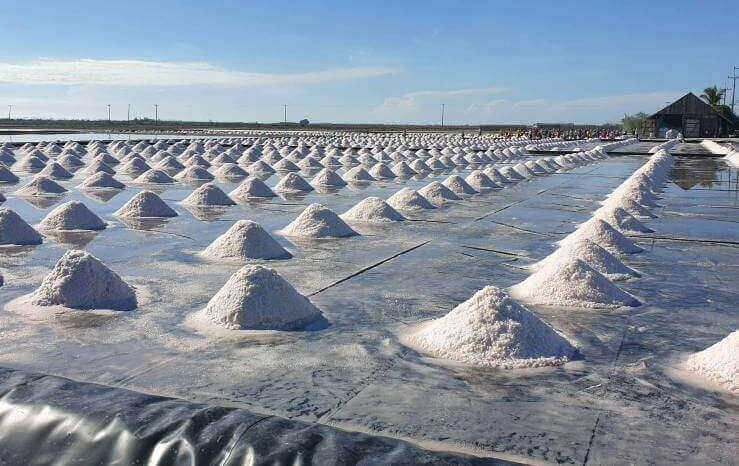

Water & Water Containment:Geomembranes and geotextiles are used in reservoirs, irrigation systems, canals, artificial lakes, wastewater facilities and other water-related projects.Key considerations include leakage prevention, UV exposure, puncture resistance, subgrade conditions and expected service life.
Mining:Mining applications can involve demanding environmental and chemical conditions.Planetliner supplies geomembranes and geotextiles for applications such as heap leach pads, tailings ponds, process-water ponds and other mining containment systems.Material selection can take into account chemical exposure, temperature, puncture resistance, tensile properties and installation conditions.
Waste Management:Geomembranes and geotextiles are widely used in landfill liners, landfill caps, leachate containment and related environmental protection systems.In these applications, long-term containment performance and protection against mechanical damage are critical considerations.
Aquaculture:Geomembrane liners are used in fish and shrimp ponds to reduce water loss and provide a controlled containment surface.Depending on the project, liner selection may consider fish or shrimp farming conditions, pond geometry, subgrade preparation, UV exposure and installation requirements.
Transportation & Infrastructure:Geotextiles and geogrids are commonly used for separation, filtration, drainage and reinforcement in roads, embankments and other infrastructure projects.The appropriate material depends on soil conditions, traffic loading, drainage requirements and the required reinforcement function.

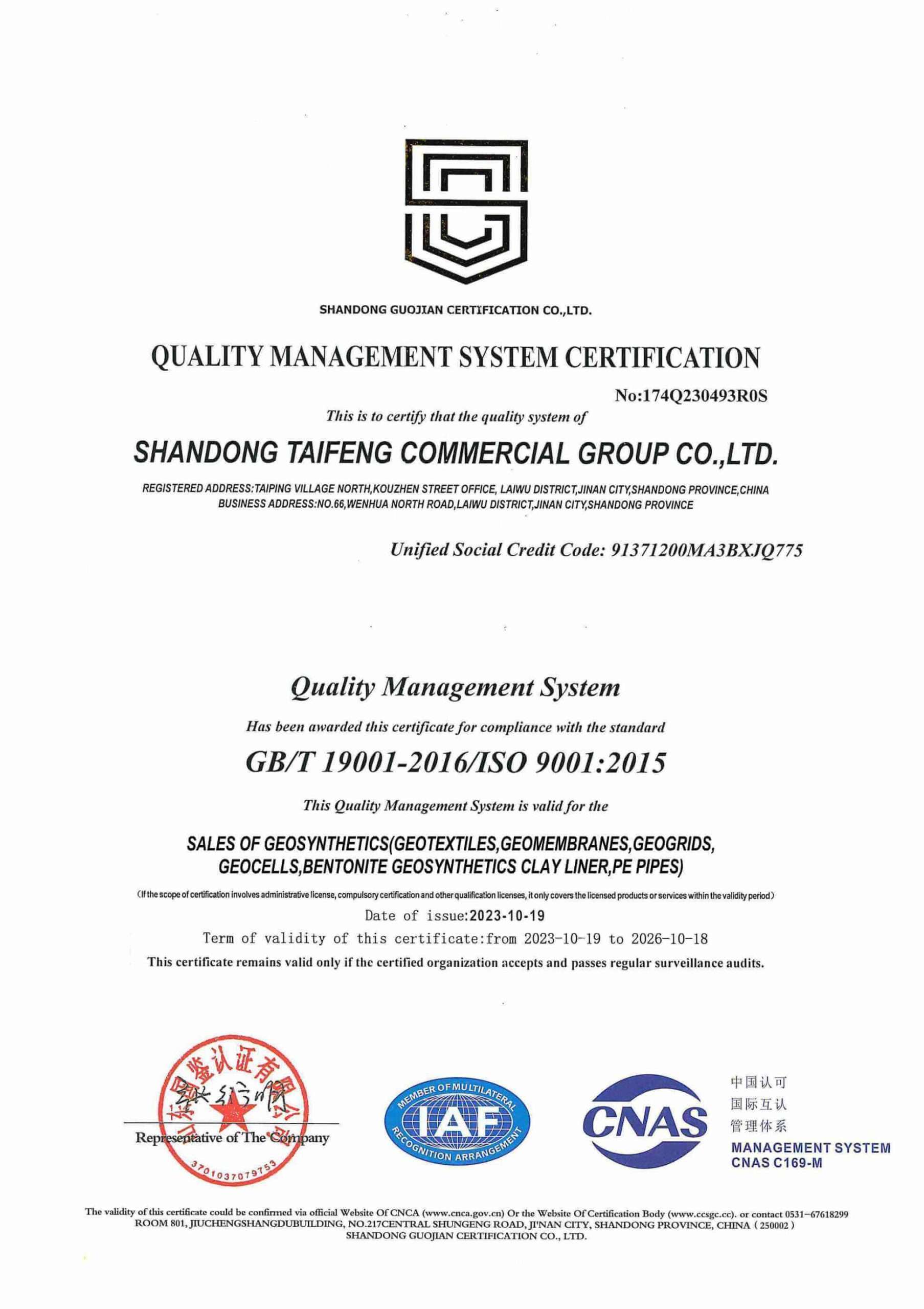

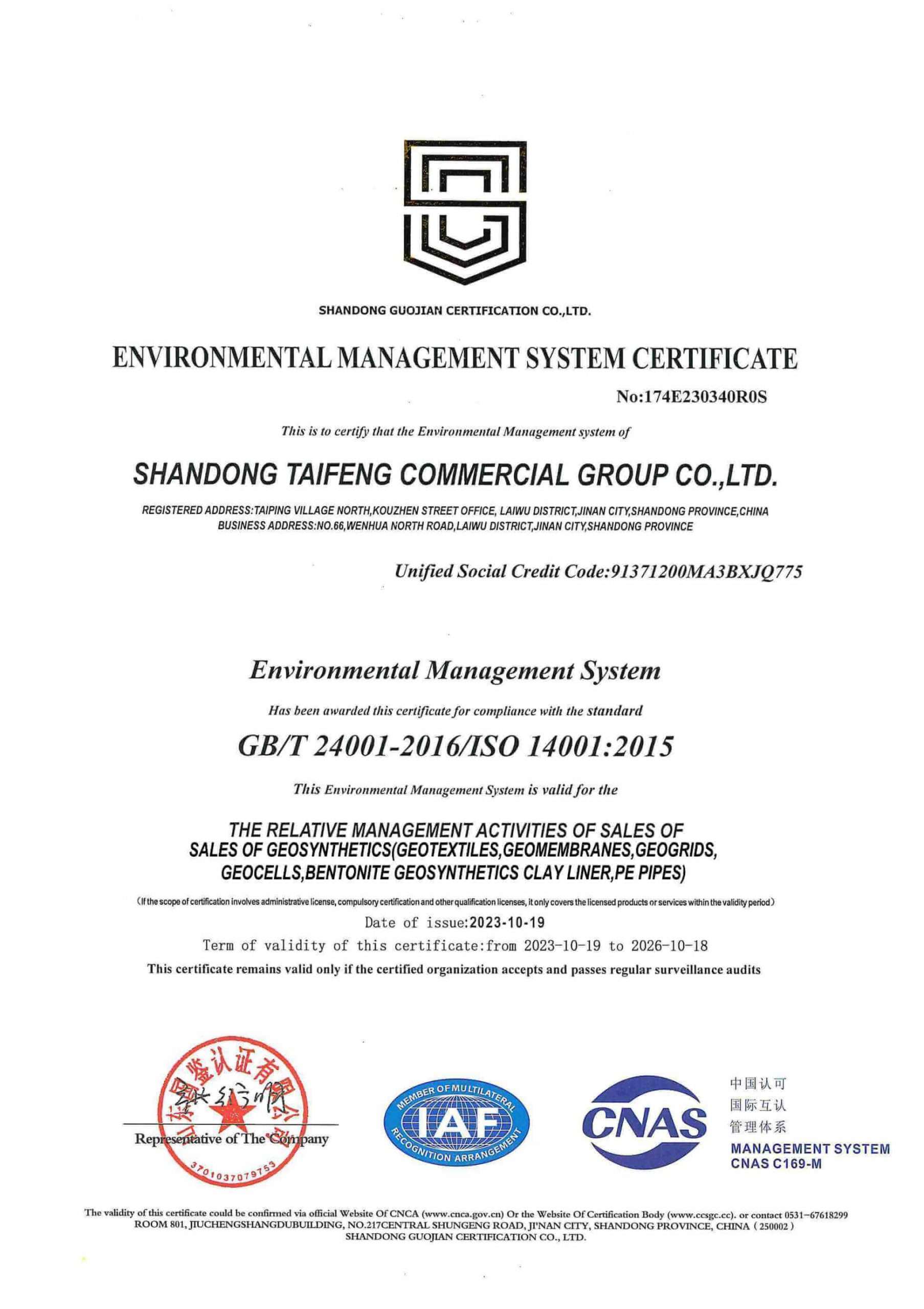

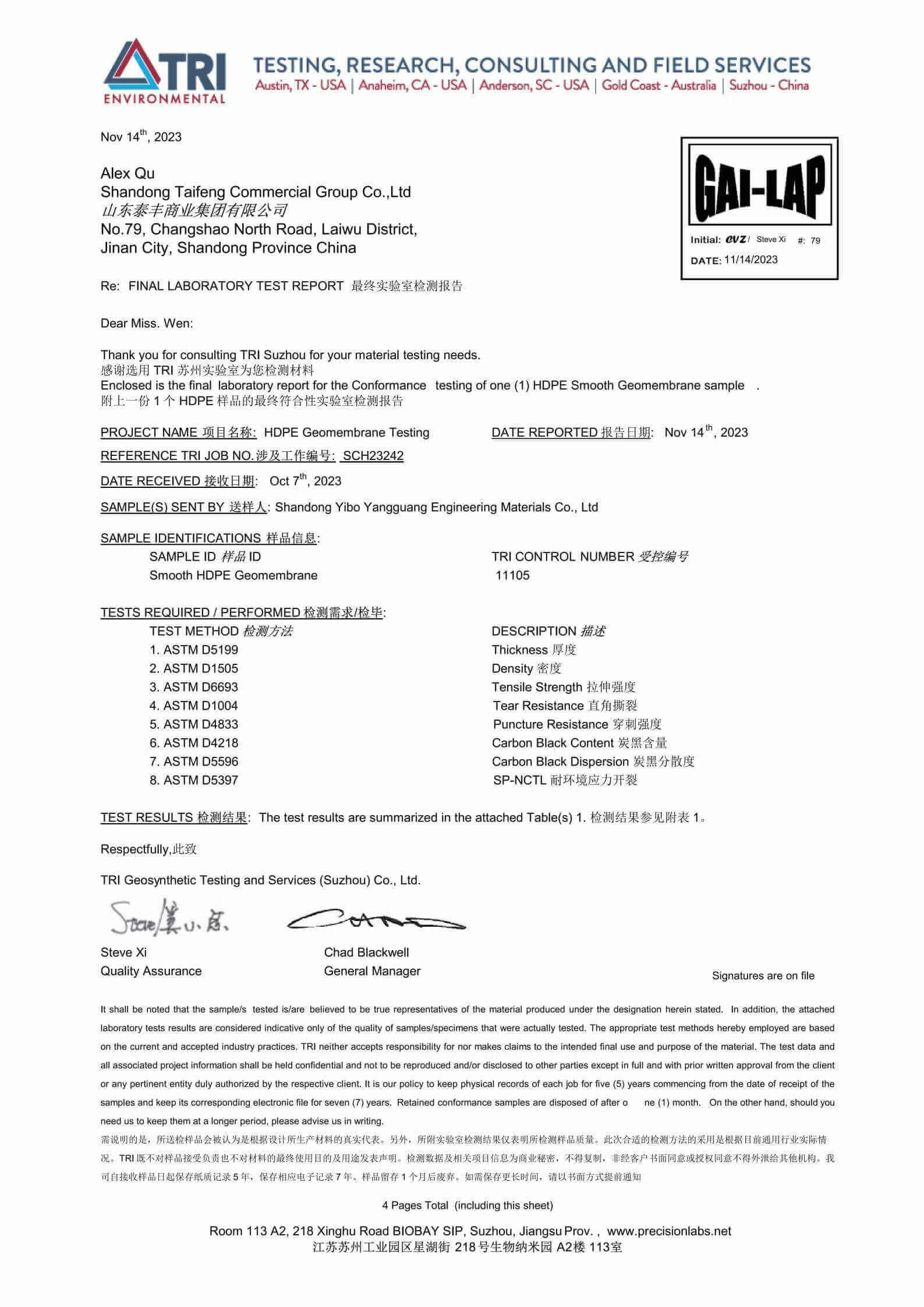

Certifications and Testing
Geosynthetics Material Manufacturing Test Machines
Planetliner has developed manufacturing capabilities for major geosynthetic product categories, with production and quality-control processes designed for international project requirements.
For geomembrane production, our manufacturing processes include extrusion and related film-forming processes for producing smooth and textured geomembrane products.Our reported geomembrane production capacity is approximately 20,000 tons per year, while typical production lead time is around 7–14 days depending on specifications, order quantity and production scheduling.
Production capabilities can include customized:
- Size,thickness, length width
- Surface configuration
- Color
- Packaging
- Product specifications
Customized production is subject to technical feasibility and project requirements.
Geosynthetic performance begins with raw material quality and continues through every stage of manufacturing.
Our manufacturing and quality-control capabilities are supported by production and testing equipment used to evaluate the physical properties and consistency of geosynthetic materials.
Depending on product type and project requirements, testing may cover properties such as:
- Tensile strength
- Elongation
- Tear resistance
- Puncture resistance
- Thickness
- Dimensional characteristics
- Other relevant physical properties
Project-specific testing requirements can be discussed before production so that the supplied material is aligned with the agreed technical specification.
From Requirement to Delivery
We aim to make international geosynthetic procurement straightforward and predictable.
1. Project Requirement:We first understand the intended application, required material, dimensions, quantity and relevant project conditions.
2. Technical Recommendation:Our team reviews the available specifications and helps identify suitable product configurations.
3. Quotation and Sample Support:We provide pricing based on the required specification and can support sample evaluation when appropriate.
4. Production:After order confirmation, production is scheduled according to product requirements and quantity.
5. Quality Inspection:The finished products are inspected according to the agreed quality requirements.
6. Packaging and Delivery:Products are packaged for international transportation and shipped according to the agreed delivery terms.
7. After-Sales Communication:We remain available for product-related questions and technical communication after shipment.
Frequently Asked Questions
1.Is Planetliner a geosynthetics manufacturer?
Yes. Planetliner is a China-based geosynthetics manufacturer and supplier and has been involved in the geosynthetics business since 2002.
2.Where is Planetliner located?
Planetliner is based in Shandong Province, China, and supplies geosynthetic materials to international customers.
3.What geosynthetic products does Planetliner supply?
Our main products include HDPE geomembrane, LLDPE geomembrane, woven geotextile, nonwoven geotextile, geogrid, geosynthetic clay liner (GCL), geonet and related geosynthetic materials.
4.What types of geotextile does Planetliner supply?
Planetliner supplies woven and nonwoven geotextiles, including polypropylene (PP) and polyester (PET) products for separation, filtration, drainage, reinforcement and protection applications.
5.Can Planetliner provide customized geosynthetic products?
Yes. Customized dimensions, thicknesses, roll sizes, surface configurations, packaging and other specifications may be available depending on the product and production requirements.
6.Does Planetliner support international projects?
Yes. Planetliner supplies geosynthetic materials to international contractors, distributors, project owners and engineering partners across multiple global markets.
7.Can Planetliner provide testing and quality documentation?
Yes. Product documentation and third-party testing support can be arranged according to the product specification and project requirements.
