High Density Polyethylene Membrane For Mining Project in Ghana

As a leading HDPE geomembrane manufacturer in China, we have four advanced production lines that produce both smooth and textured high density polyethylene membrane up to 8 meters wide. Every hdpe high density polyethylene sheet is engineered to meet or exceed ASTM GRI specifications, ensuring exceptional durability, chemical resistance, and UV stability for projects worldwide.

What is a High Density Polyethylene Membrane

A high density polyethylene membrane, also called a high density polyethylene liner or high density polyethylene geomembrane, is a waterproof impermeable barrier sheet made from 100%virgin HDPE resin. This material is combined with carbon black, antioxidants, and UV stabilizers to resist environmental degradation.

The result is a low-permeability liner that effectively prevents the migration of liquids, gases, and chemicals—making it ideal for pond lining, landfill containment, mining heap leach pads, and industrial wastewater treatment systems.

Why HDPE Geomembrane is Widely Used

When comparing lining materials, hdpe high density polyethylene sheet is popular as some advantages:

ASTM-Exceeding Quality: We do not just meet ASTM standards for HDPE geomembranes (such as ASTM D6693 for sheet, ASTM D6392 for tension properties, ASTM D7409 for stress cracking resistance); we rigorously design our formulations and control our production processes to consistently surpass them. This ensures you receive a liner built for maximum longevity and performance.

Full Surface Options: Our two dedicated production lines allow us to expertly manufacture both smooth and textured (rough surface) High Density Polyethylene Liner products. Textured liners provide superior interface friction, crucial for stable slopes in landfill caps, reservoir berms, and pond applications.

Smooth and Textured HDPE Liner – Choosing the Right Type

• Smooth HDPE Liner – Ideal for primary containment layers where ease of welding is important.

• Textured HDPE Liner – Provides slip resistance on slopes, critical in landfill side walls and tailing dams.

In many projects, a combination of both is used to balance cost and performance.

8-Meter Width Advantage: Producing geomembranes in 8-meter (over 26 feet) widths is a significant technical achievement. It offers substantial benefits:

• • Reduced Seams: Drastically fewer field welds needed compared to narrower rolls.

  • Faster Installation: Larger panels cover ground much quicker.

  • Lower Risk: Fewer seams mean fewer potential leak points.

  • Cost Efficiency: Savings on welding labor, materials, and testing.

Versatile Applications: Whether you need a robust High Density Polyethylene Pond Liner for aquaculture or irrigation, an impermeable cap for a landfill, a secure base liner for industrial containment, or a solution for challenging mining leachate, our HDPE geomembranes provide the proven performance. They are also the premier choice for potable water reservoirs and wastewater treatment lagoons due to their inert nature and impermeability.

Main Applications:

• Mining Heap Leach Pads – Acid-resistant and durable under high loads.

• Landfill Liners and Caps – Prevent leachate from contaminating soil and groundwater.

• Wastewater Treatment Lagoons – Chemically stable in harsh effluents.

• Aquaculture and Agriculture – UV resistant HDPE pond liner for aquaculture ensures safe fish and shrimp farming.

• Oil and Gas Containment – Chemical resistant HDPE membrane for industrial use.

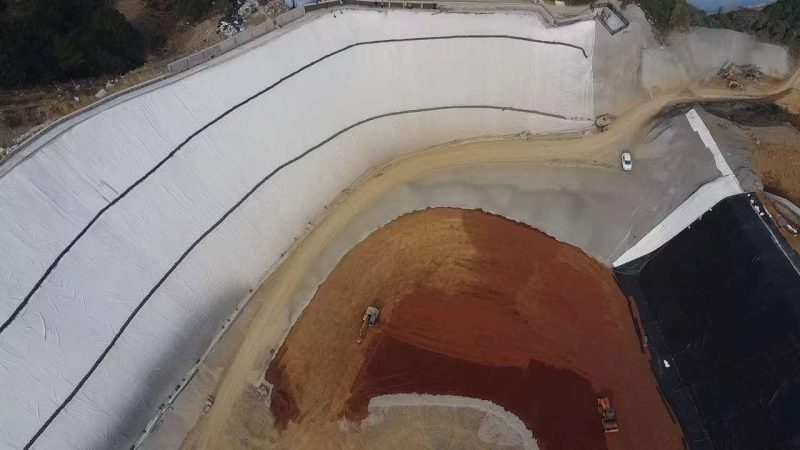

Case Study HDPE Geomembrane for Mining Projects

In mining applications, such as gold, copper, and rare earth extraction, hdpe geomembrane for mining projects is the preferred choice for heap leach pads, tailing storage dams, and evaporation ponds.Using 8 meter wide high density polyethylene roll reduces field seams and speeds up installation, minimizing leakage risks.

• Location:Ghana
• Products:2mm high density polyethylene membrane
• Application:Mining Project

Issue

Despite having a land area of only 238,000 square kilometers, Ghana boasts some of the most abundant mineral resources in Africa.
Gold reserves: Proven reserves exceed 2,000 tons, with annual output consistently over 130 tons for five consecutive years (ranked 6th in the world)
Bauxite reserves: over 900 million tons (5th in the world), with an alumina content of 45% to 53%.
Manganese ore resources: reserves of 49 million tons (2nd in Africa), concentrated in the Ensutu mining area.
Diamond deposits: The Birim River Basin in the Eastern Region produces high-quality gem-grade diamonds.
Emerging strategic resource: A large lithium spodumene mine has been discovered in the north, with an estimated lithium resource of 18 million tons (LCE equivalent).

However, the mining industry also meet considerable environmental challenges, such as land degradation, water pollution, and air pollution. To solve these problems, the use of geomembranes in the mining projects are becoming popular.

Specifications of high density polyethylene membrane for Mining Project in Ghana

• Total 2mm geomembrane – 180,000 square meters
• Specifications: 2mm 7*100m
• 10* 40HQ containers

Solution

For the mining project in Ghana, high density membranes should be used to handle tailings, heap leaching pads and evaporation ponds. The tailings can be stored on the hdpe membranes to prevent pollutants from seeping into the soil, thereby reducing the risk of land degradation and related ecosystem damage. We place the ore on the geomembrane pads and use the leaching solution to dissolve the metals. Then we collect and treat the solution to recover the required metals. By using high-density polyethylene membranes as barriers, mining companies can prevent the release of harmful chemicals and pollutants, thereby reducing the risk of water pollution.
Our high-density polyethylene membrane has stable chemical properties and can be used in mining heap leaching fields, evaporation ponds and landfill sites. It is resistant to high and low temperatures, and can withstand corrosion from more than 80 kinds of strong acid and alkali chemical media such as asphalt, oil, acid, alkali and salt. It has good anti-seepage performance, and the cost of the inner lining of the mining membrane is low, with significant anti-corrosion and anti-seepage effects. Our high-density polyethylene geomembrane is resistant to high and low temperatures, and is used for anti-seepage. It has good economic benefits, low comprehensive cost, less investment, and complies with sewage anti-seepage standards. Therefore, high-density polyethylene geotextile membrane is widely used in mining projects.
After the customer learned about the application of high density polyethylene membranes in the mining project, they sent us photos of the project site. Based on our export experience, we recommended a 2mm thickness hdpe membrane to the customer. We clearly understood the customer’s needs and proposed a comprehensive solution. We immediately arranged samples, testing and production for the customer, and provided installation guidance. With our professional customized services, we won the customer’s trust and support. After detailed order negotiations and confirmation of all details with professional capabilities, the customer made a prepayment, and we quickly produced and shipped the goods.

HDPE vs PVC Geomembrane Comparison

In some countries, people donot know the difference between HDPE and PVC liner,Both HDPE and PVC are popular in lining systems, but their performance differs:

1. Chemical Resistance Champion: HDPE Geomembrane offers exceptional resistance to a vast array of chemicals, including strong acids, alkalis, and salts. This makes it indispensable for mining leach pads (as seen in the Mongolia project), industrial wastewater containment, and agricultural lagoons where harsh chemicals are prevalent. PVC, while resistant to many substances, can be degraded by certain hydrocarbons, solvents, and concentrated acids.

2. Superior Durability & Lifespan: High Density Polyethylene Sheet is renowned for its outstanding resistance to ultraviolet (UV) radiation, extreme temperatures (both high and low), and environmental stress cracking. Properly formulated HDPE geomembranes can have projected service lives exceeding 50 years with minimal degradation. PVC, although flexible, is generally more susceptible to UV degradation, plasticizer migration (which leads to embrittlement over time), and has a lower overall temperature resistance range.

3. Unmatched Strength & Puncture Resistance: The high density structure gives HDPE High Density Polyethylene Roll exceptional tensile strength, tear resistance, and puncture resistance. This is crucial when installing over potentially rough subgrades or in applications like landfill base liners and mining heap leach pads where heavy loads or sharp objects are present. While PVC is flexible, it typically has lower puncture and tear strength compared to HDPE of equivalent thickness.

4. Environmental Stability: HDPE maintains its properties consistently across a wide temperature range and is inherently inert. Its long-term performance is predictable. PVC’s reliance on plasticizers for flexibility introduces a variable; these additives can leach out or migrate, altering the liner’s physical properties and potentially impacting the contained environment over decades.

Why Choose Us as Your HDPE Geomembrane Supplier

1. 8 Meter Wide HDPE Liner Manufacturer – Fewer seams, faster installation, reduced leakage risks.

2. Global Project Experience – Supplied to mining, landfill, and water projects across Asia, Africa, and South America.

3. Custom Thickness Options – From 1.0 mm to 2.5 mm to suit project demands.

4. Technical Support – On-site installation guidance and welding training available.

5. Proven Durability – Long service life under extreme weather and chemical exposure.

Whether you are building a mining heap leach pad, lining a wastewater lagoon, or installing a high density polyethylene pond liner for aquaculture, HDPE geomembrane offers unmatched durability, chemical stability, and cost efficiency.

With advanced manufacturing, ASTM-compliant quality, and worldwide supply capacity, our hdpe high density polyethylene sheet, high density polyethylene roll, and high density polyethylene geomembrane products provide reliable protection for your containment projects.Follow our Linkedin Facebook Youtube for more details!
