LLDPE HDPE Geomembrane Liner: How to Choose the Right Manufacturer or Supplier
A geomembrane liner is a strong, waterproof and impermeable sheet,it is made from synthetic materials.It is widely used to stop liquids or gases from leaking into the ground. If you are working in waste management, mining, water storage, or agriculture, using the right liner is very important to finish the project and protect the environment.
Why Are Geomembrane Liners So Important?
A geomembrane liner is a synthetic barrier made from durable polymers. Its main job is simple but critical, to stop liquids from passing through.
- Superior Containment: They are waterproof, preventing harmful chemicals from seeping into the ground and protecting precious water resources from being lost.
- Outstanding Durability: They are engineered to resist punctures, chemicals, and UV rays, ensuring a long service life.
- Cost-Effective: Liners are often cheaper and much faster to install than concrete, saving both time and money on a project.
The Geomembrane liner specifications:
1.Thickness range:0.2-3mm,popular thickness 0.75mm 1mm 1.5mm and 2mm.
2.Width range:1-8m,popular width 5.8m 7m and 8m.
3.Length: customized
4.Color: black mainly, green, blue, white colors can be cusotmized.
5.Surface: smooth surface, textured/rough surface,one side smooth and one side textured/rough.
The Geomembrane liner Features:
1.Waterproof and impermeable
2.UV resistance(black color)
2.High tearing resistance
3.Puncture-resisting
4.Nontoxic
5.Long life
6.Root resistance
About the Geomembrane liner, we have 3 blowing film production lines, 1 calendering line and 1 textured surface line,can make 7300tons/year.Production time within 15days normally.
The production liner uses automatic weighing and mixing. Compared with traditional manual mixing, the formula accuracy is 5% higher and there is no pollution,to reduce the potential quality risk.We use three-stage heating method of the screw machine, with temperature control system and heat preservation, to control the flow rate of melted resin,keep the quality and production output.With the designed blow up ratio,3-layer co-extrusion can control thickness and diameter , the air rin to reduce temperature,and excellent property is achieved by pulling traction.
Types of Geomembrane Liners: Choosing the Right Material
There are different materials which named geomembrane liner too,
HDPE (High-Density Polyethylene):HDPE is the most widely used geomembrane in the world,Most common material,Strong, UV-resistant,Long lifespan (up to 50 years),Ideal for landfills and mining.
LLDPE(Linear Low-Density Polyethylene):LLDPE is a more flexible cousin of HDPE.More flexible than HDPE,Easier to install over uneven surfaces,Used in ponds and tanks.
PVC (Polyvinyl Chloride):PVC is very flexilble but the material is not non-toxic.Easy to weld and install,Good chemical resistance,Often used in water and chemical storage.
RPE (Reinforced Polyethylene):RPE contains a woven support grid (scrim) layered between polyethylene sheets.Reinforced for added strength,Lightweight and durable,Suitable for temporary or permanent ponds.
EPDM (Ethylene Propylene Diene Monomer):EPDM is heavy and high cost.
Common Applications
Geomembrane liners are used in many industries:
1.Aquaculture projects: fish ponds, shrimp ponds, industrialized aquaculture ponds, etc.
2.Environmental protection projects: Landfill, sewage treatment plants, power plant regulating pools, industrial and hospital solid wastes, etc.
3.Agriculture: Seepage control of reservoirs, water reservoirs, irrigation systems, canals, etc.
4.Mining: heap leaching platforms, conduit, and retention channels and wells for liquid solutions, final disposal reservoirs.

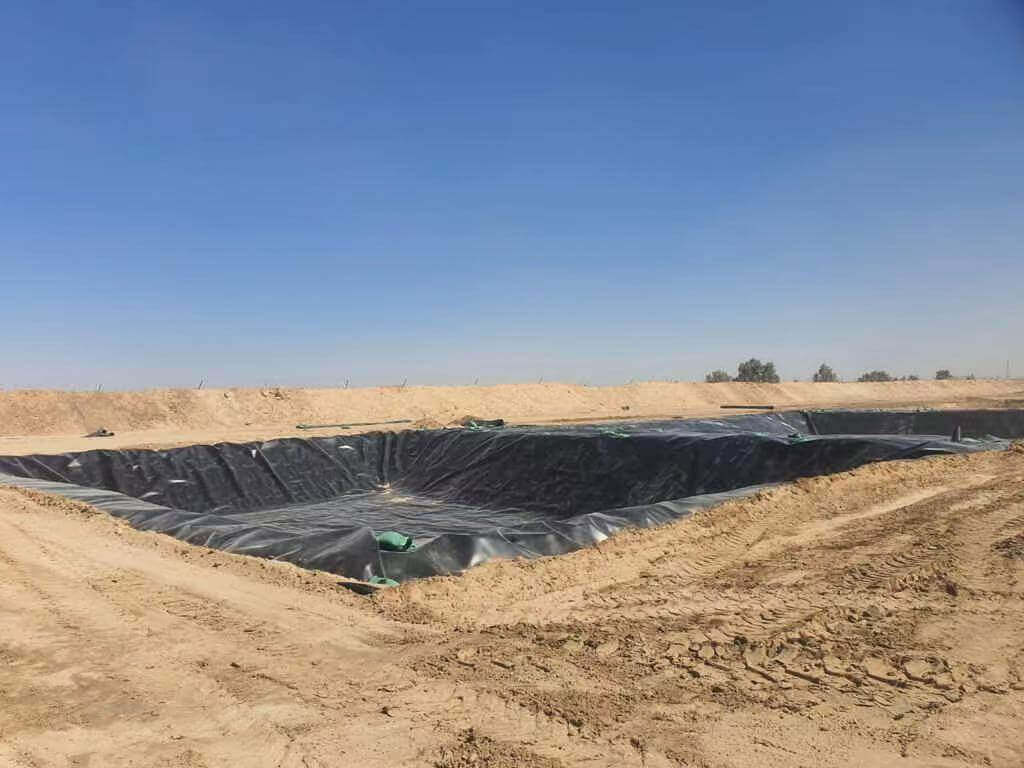

5.Oil&gas:fresh water liner,pit liner,flow-back water pond liner,oild containment etc.
6.golf-course,coal ash,animal waste,solar&pumped storage ponds etc.
| Industry | Project case |
|---|---|
| Agriculture | Irrigation water ponds,canals,fish shrimp farms |
| Mining | Heap leach,Tailing,water ponds |
| Construction | waterproofing foundations,tunnels |
| Waste management | landfill liner and cover |
| Water sotrage | Reservoir,tanks,lagoons |
Real World Applications: Our Liners in Action

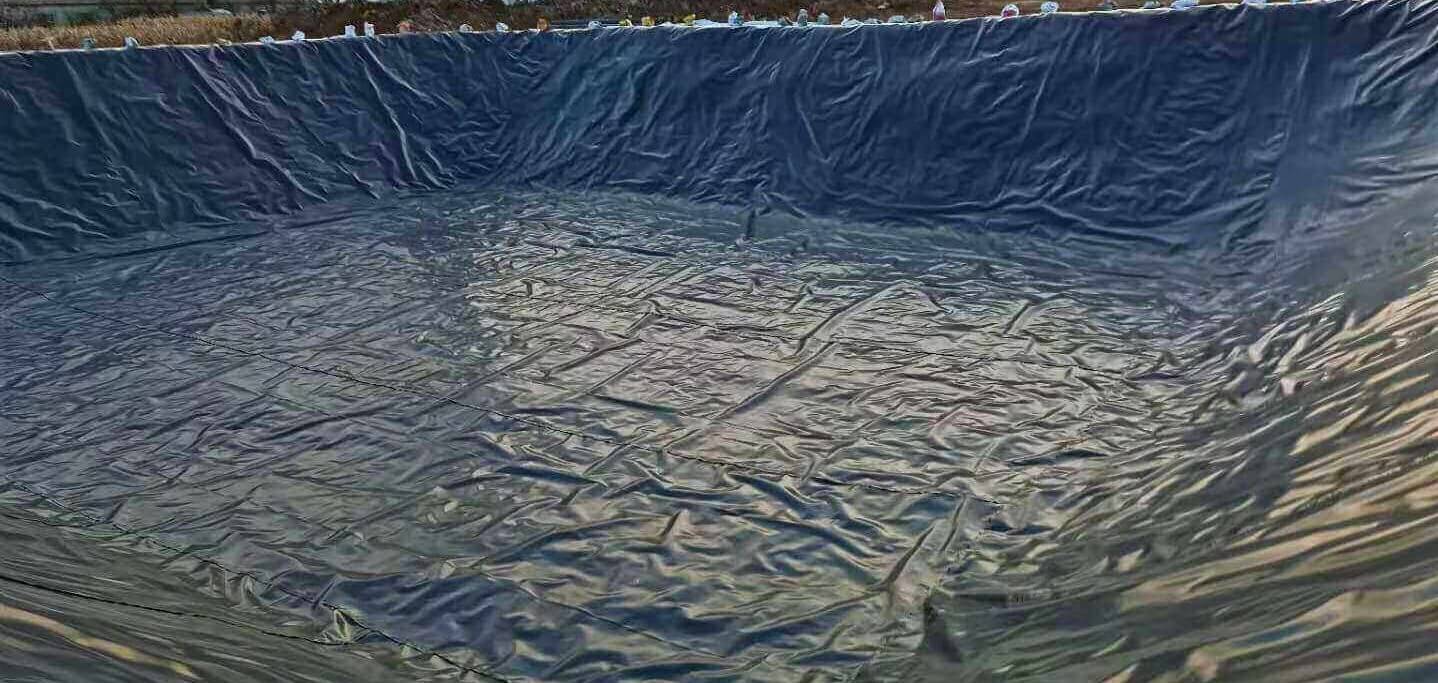

With over 10 years of geosynthetic experience supplying liners for more than 200 projects,from local farm ponds to large international mining operations,In 2021year, our company received an inquiry about the water reservoir from Africa,the pond size is 100*30m, and the depth is 3m.the customer hope to keep water for the agriculture,and hope to use the pond liner for more than 5years.
Considering the customer location, weather temperature and the uv index, we highly suggested customer to use 1mm thickness pond liner, which should be 100% virgin raw material. The virgin pond liner has high property and uv resistant,so it can be used for about 6-20years.
The customer was interested in our production too, we had a online meeting, and showed our production equipment to the customer,we introduced the production process to the customer, the blow film process, how to make the geomembrane, and how to control the quality.Meanwhile, our geomembrane third party test reports were sent to customer, and the customer trust our production quality.
For the geomembrane pond liner size, our normal width is 5.8m 7m or 8m, the length can be customized.For customer 100*30m, we suggest the 5.8m width, because the quantity is not full for a container, the big width may waste the container volume and cost, the length can be 100m.
After talking with customer about the production, and quality, the customer confirmed the order, and made the deposit payment.
Here are some examples of our liners in the world:

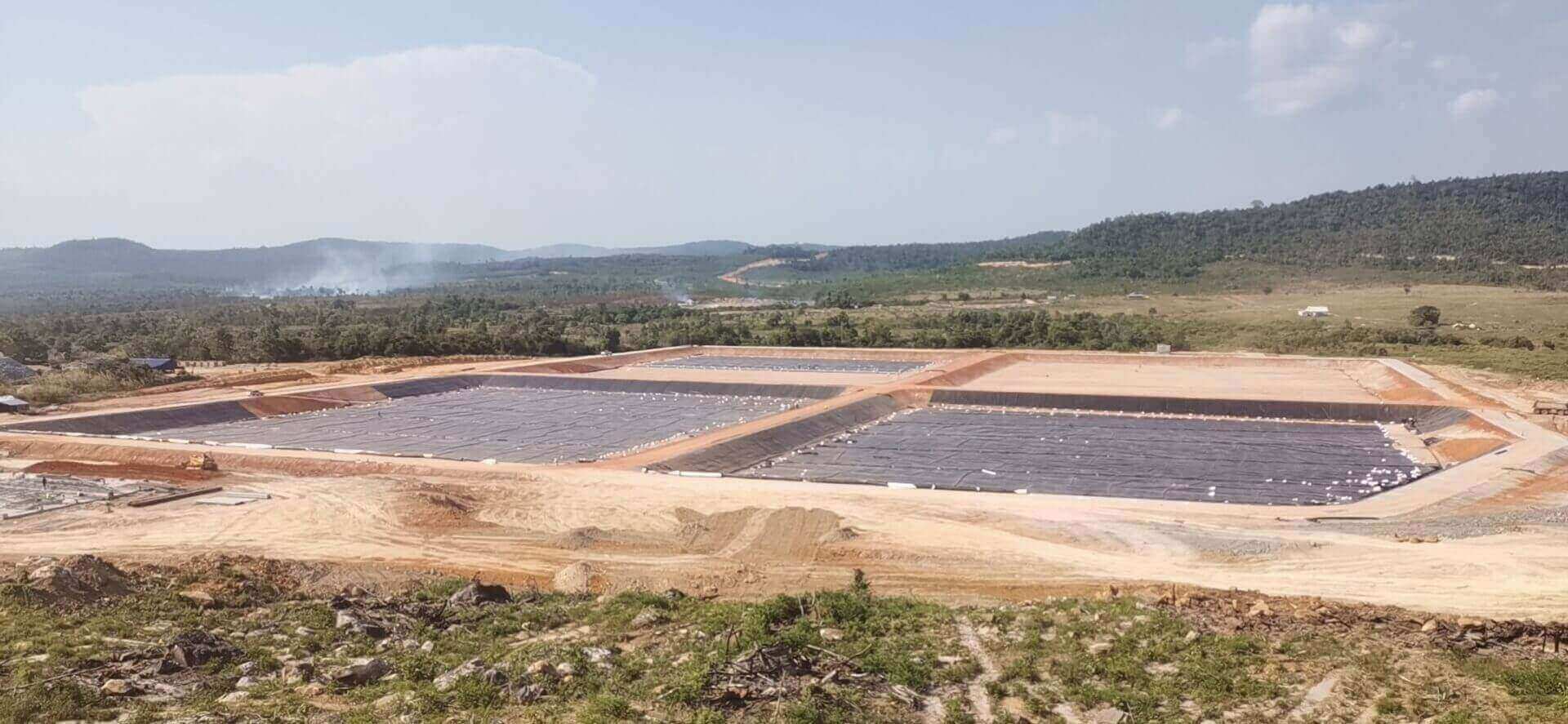

Case 1: Environmental Protection (Landfills)
Country:Cambodia
Solution: We manufactured and supplied a 1.5mm thick HDPE liner, which met ASTM GM13,and Our one engineer provided technical support to the local installer.
Case 2: Aquaculture (fiish pond)
Country:Philippines
Solution: We manufactured and supplied a 1mm thick HDPE pond liner, which use 100%virgin material,and delivery the hot wedge machine together.
Case 3: Mining Operations (Heap Leaching)
Country:Ghana
Solution: We manufactured and supplied a 2mm thick HDPE geomembrane liner, GRI GM13 standard,and our Lab test reports are sent together.
Installation Process
A high quality geomembrane liner must be installed carefully to ensure full protection.
Site Preparation – Remove rocks, roots, and make the ground flat and even.
Liner Placement – Roll out the liner without stretching or tearing it.
Seaming/Welding – Use heat or extrusion welding machines to seal the liners togehter.
Testing – Check seams using vacuum machine testing or air channel tests.
Covering (if needed) – Add soil or gravel for protection from UV or damage.
How to Choose Your Partner: Manufacturer vs. Supplier
Choosing the right geomembrane liner manufacturer, supplier, distributor, or exporter is key for project success.
When selecting your partner, look for these signs of trustworthiness:
Certifications: Do their products meet international standards like GRI or ASTM?Or had the third party test?
Custom sizes and thickness options: Can the supplier have a big thickness range, and customized size.
Technical Support: Do they have an expert team to help you choose the right material and teach you installation?
Fast delivery and export services:How long can the goods be delivered? and can help on the shipping ?
Competitive pricing and long-term warranties:Is the price competitive in the market?
When looking for a geomembrane liner supplier, always check their track record, production capacity, and export experience.
Frequently Asked Questions (FAQ)
1. How long do geomembrane liners last?
A properly selected and installed liner (especially HDPE) can last for 50years, normally 10-40 years.
2. Are geomembrane liners safe for fish and plants?
Yes, our liners like LLDPE and HDPE use 100%virgin material, nontoxic safe.
3. What is the approximate cost of a geomembrane liner?
Cost varies by material, thickness, and quantity.
As a dedicated manufacturer, supplier, and exporter of geomembrane pond liner, we are committed to quality and customer success. Our team of experts is ready to help you navigate your options and find the perfect solution for your needs.Contact our expert team today for a free consultation and quote!
